Medium duty column & boom

WELDING MANIPULATOR-COLUMN & BOOM

FAST, RELIABLE & STURDY
Different capacity, Unique purpose

V-WELD Column Boom Manipulator is a ideal fabrication manipulator for petrochemical, heavy engineering, welding, on shore and offshore. The welding column & boom can be used for welding semi-automatically for various jobs, pressure vessels, heat exchanges, colums, boilers, heavy structures, components etc for various welding process like TIG, MIG, SAW, Strip Cladding (SC), Narrow Gap Welding (NAG), hard facing, Plasma welding ( PW) etc process.

VLWM-LIGHT DUTY VMWM- MEDIUM DUTY VHWM- HEAVY DUTY VEHWM- EXTRA HEAVY DUTY COLUMN & BOOM

WELDING COLUMN & BOOM

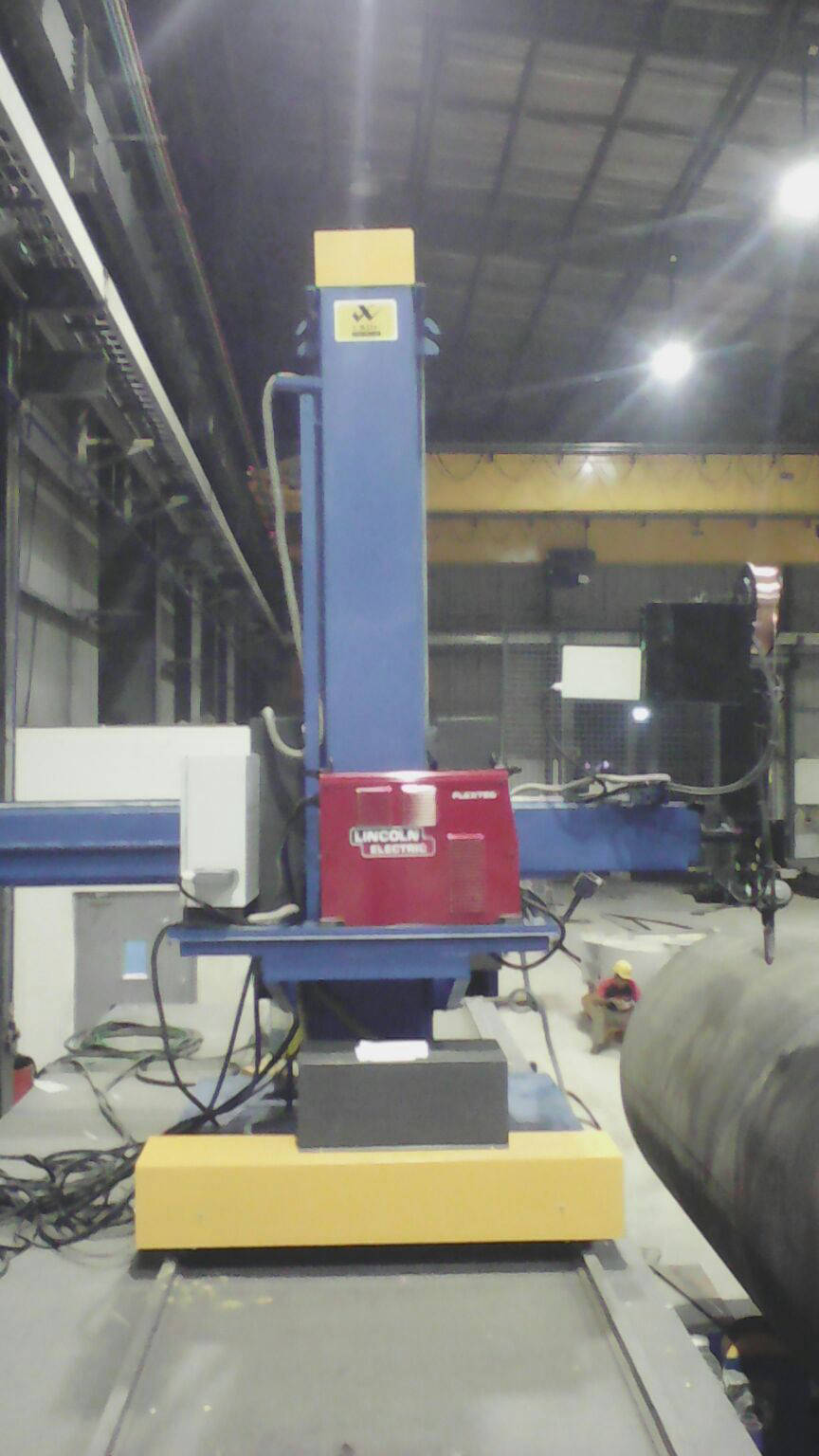

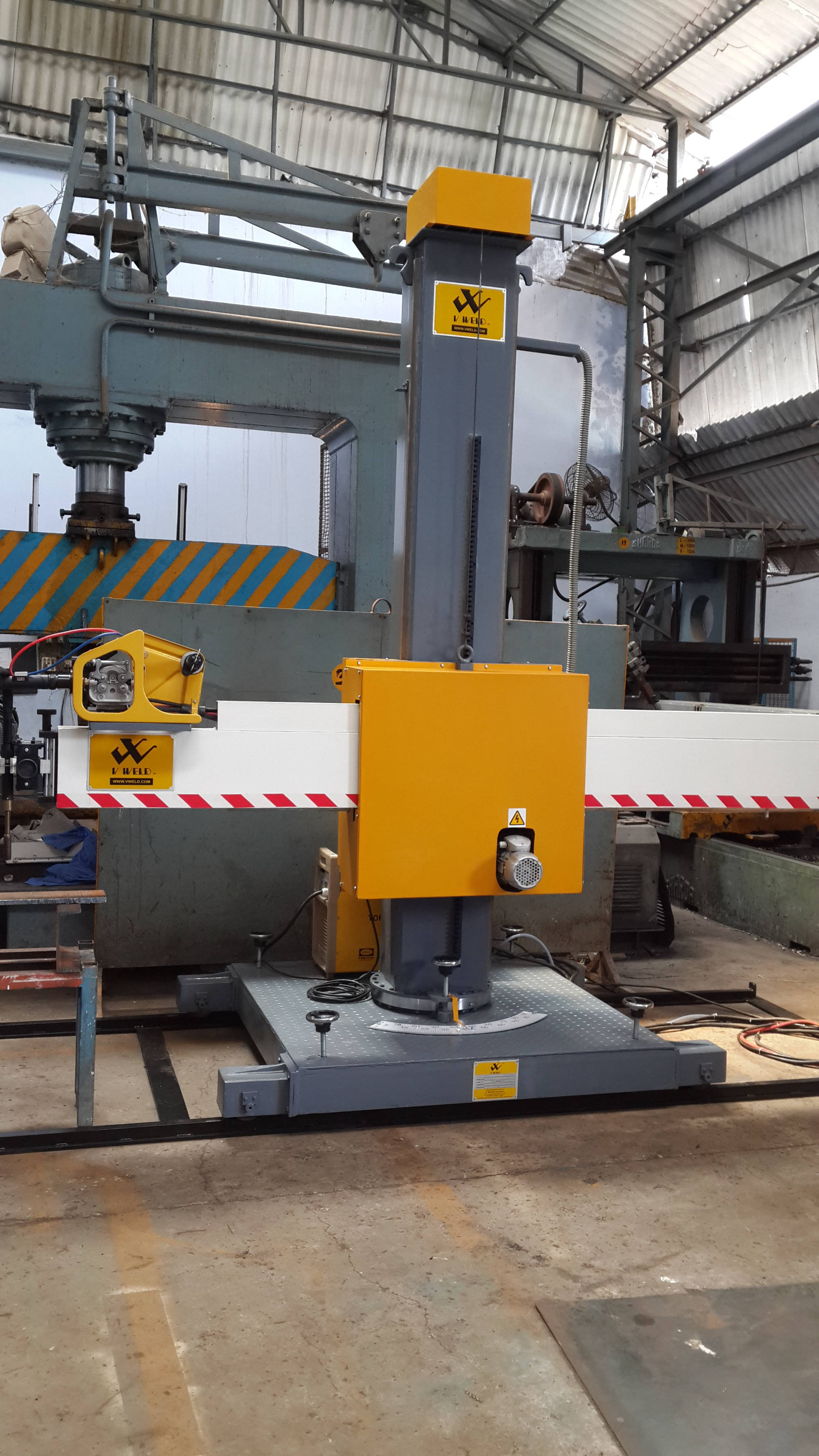

Medium duty Column & Boom/Manipulator- VMWM

FAST, RELIABLE & STURDY

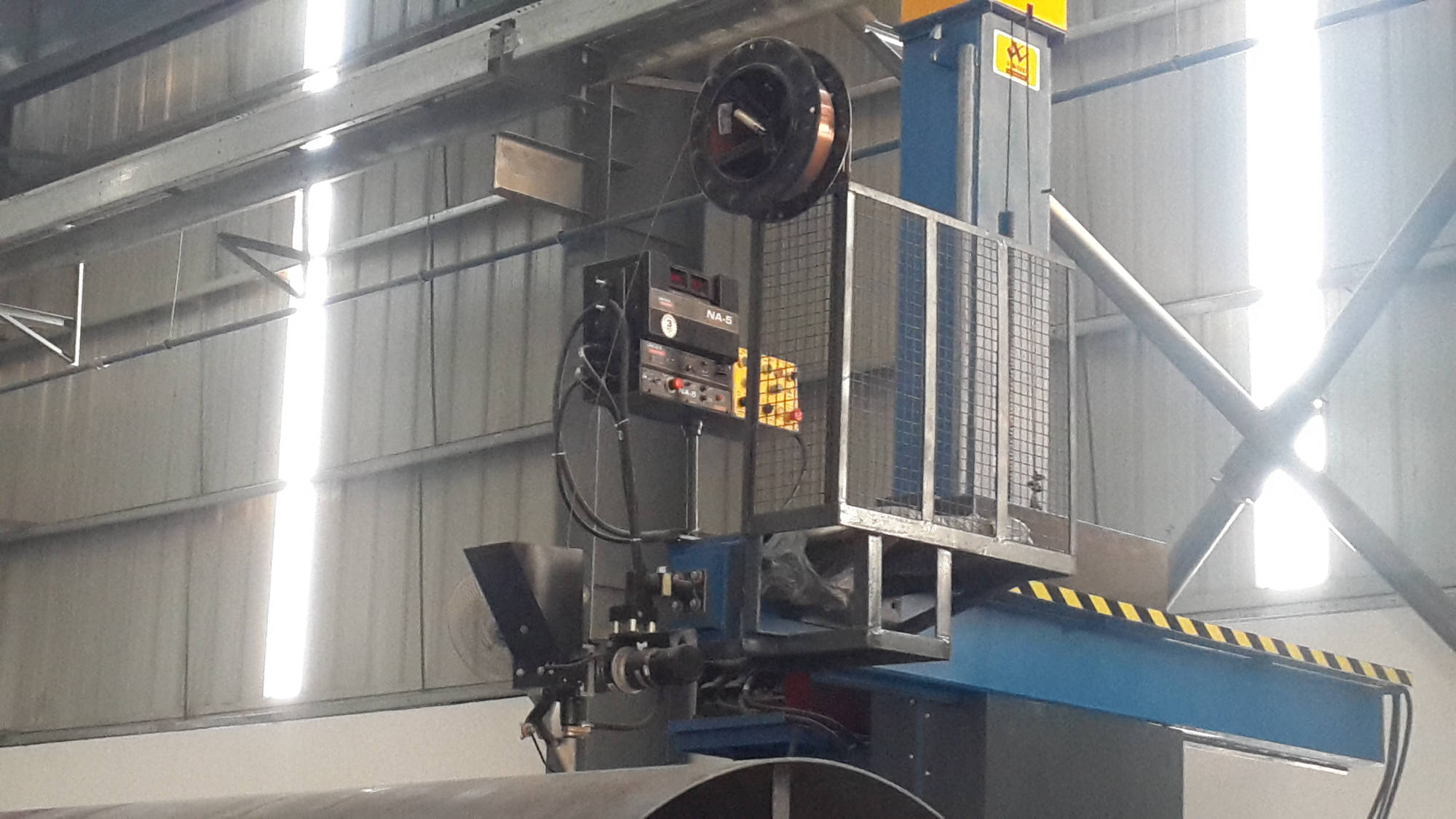

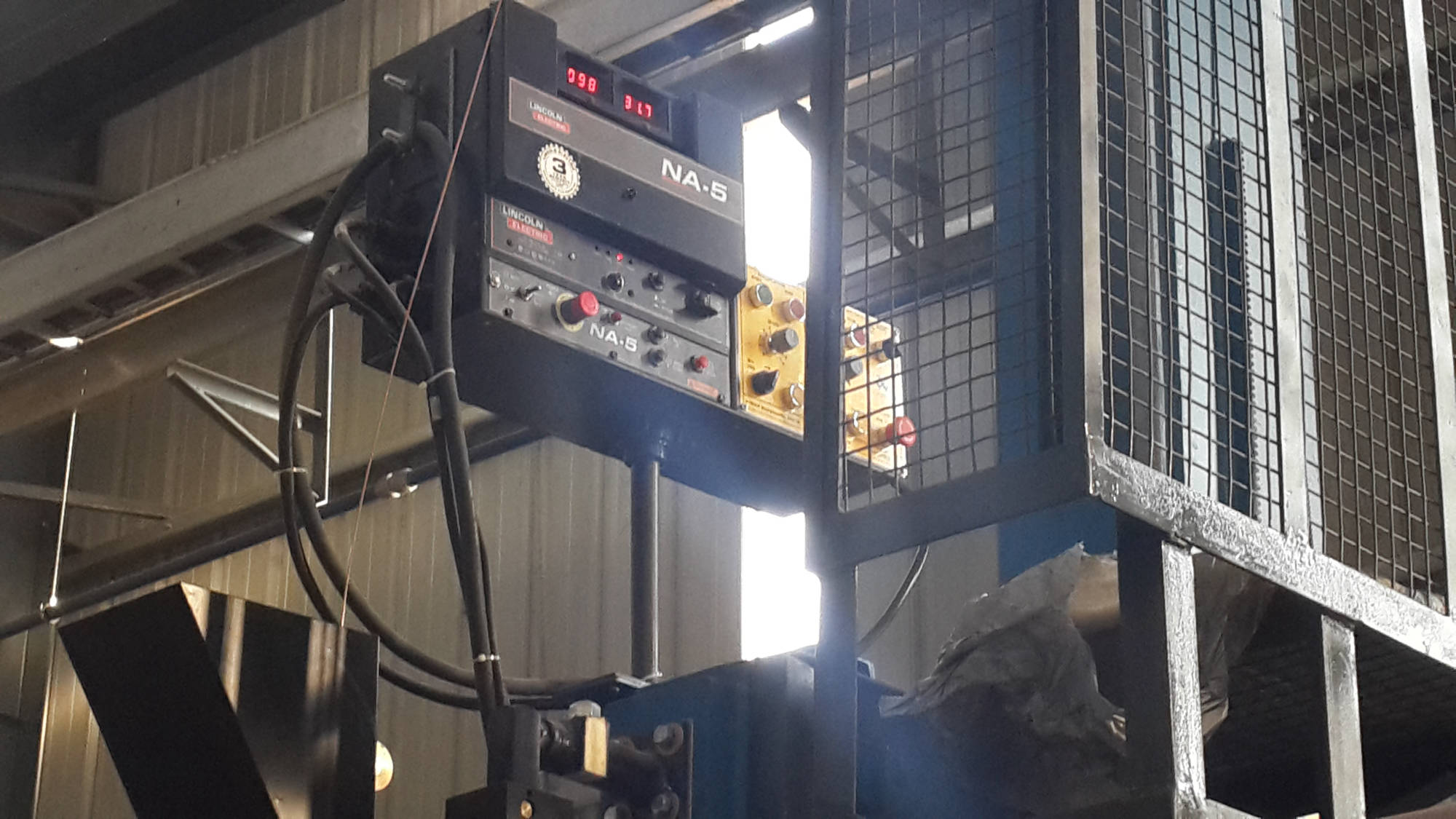

V-WELD Medium Duty Column & Boom / Manipulator / Welding Head are ideal for jobs in which welding head for welding process like TIG, MIG, Submerged Arc ( SAW), PW is to be mounted on boom end. As per the needs, the Medium duty column boom is configured.

Medium duty column boom is having size upto 6.5 mtr x 6.5 mtr, having heavy duty rack & pinion for Vertical movement and Rack & Pinion drive for Horizontal movements.

Minimum/Maximum Height of boom from floor : 1000mm / 7500mm

V-WELD Column & Boom have following axis :-
- Boom In/Out movement
- Boom Vertical UP/DOWN movement
- Column Base swivel
- C & B travel on rail track

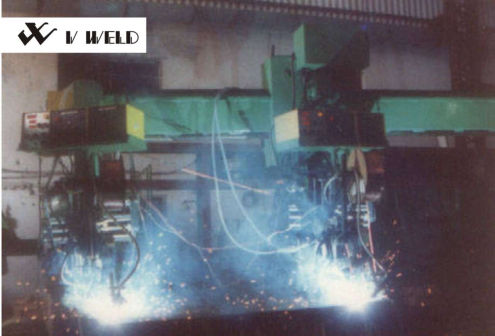

Other special versions like Telescopic Boom, Dual head on Boom & customized solutions are available on request.

Get in touch with V-WELD

Benefits

- Fast production and quality improvements
- Reduce fatigue for welder
- Most suitable for shops
-Most Economical Design.

Usage / Application Area

Pressure Vessels Manufacturing
Heat Exchanges Manufacturing
Boilers, Tanks
Pipe Silo
LPG Bullets
Pressure Vessels / Tank Manufacturing

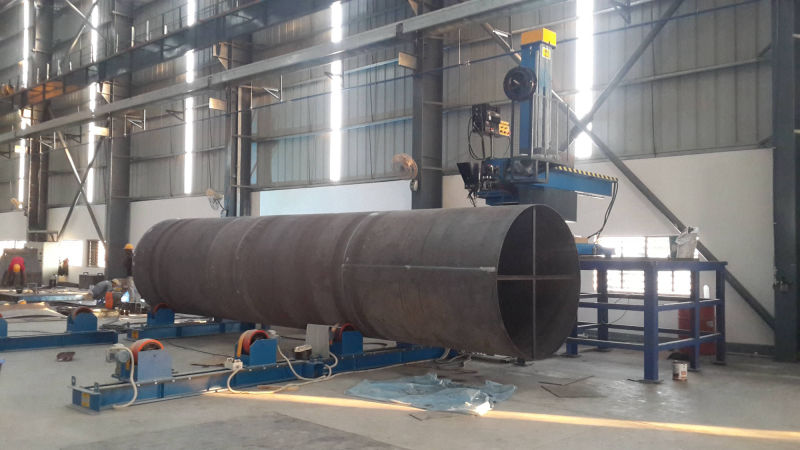

Pipe welding
